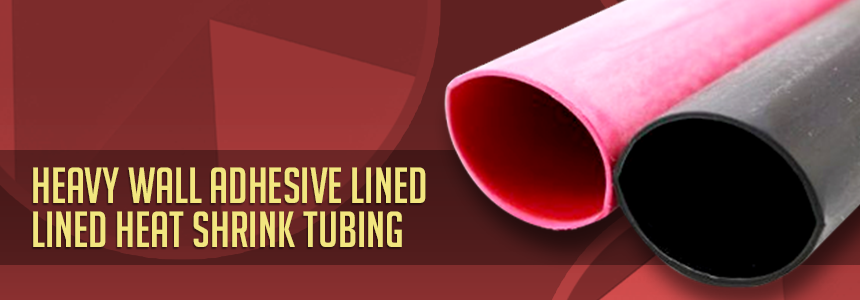

Heavy Wall Adhesive Lined Heat Shrink Tubing

Even the three little pigs could tell you that a house built of bricks is the best.

Sometimes you just need more protection. When you need the strongest standing, longest lasting defenses, don't settle for straw and sticks. Enforce, insulate, and seal all your on-the-job and at-home projects with Heavy Wall Adhesive Lined Heat Shrink Tubing.

Shelter your pipes, wires, and cables from everything 'big and bad'.

What Are We Dealing With Here?

Heavy wall adhesive lined heat shrink tubing is truly the strongest level of protection available.

From high tension electrical wires to irrigation pipes to low energy cables and mass transportation conduits, some projects just need more. Heavy wall adhesive lined heat shrink tubing offers the highest level of electrical, abrasion, and cut-through resistance making it perfect for larger applications and harsher environments.

Heavy wall adhesive lined heat shrink tubing UL 486D rated for direct burial and has a dielectric strength of 500V/mil. It's a practical, popular choice for industrial and commercial jobs because of its exceptional strength and efficacy.

Heavy wall adhesive lined heat shrink tubing is also a great choice for residential purposes where long-running cables are needed to power and control solar panels, garden lighting, alarm systems, intercoms, and outdoor audio or entertainment equipment.

So when it's time to seal and secure your next project, is heavy wall adhesive lined heat shrink tubing right for you?

How Do I Know If I Need Heavy Wall Adhesive Lined Heat Shrink Tubing?

When you're shopping around for your next task, there are three easy ways to determine if you need the heaviest wall heat shrink tubing.

1. How big is it?

This question is often a deal breaker because bigger diameters are only covered by thicker walls. General purpose heat shrink tubing covers up to 2 inches. For larger diameters, you'll need medium or heavy wall tubing. Medium wall heat shrink covers up to 5 ½ inches while heavy wall adhesive lined heat shrink tubing covers all the way from ⅜ inches to 7 inches across.

2. Where is it going?

After considering the size, you have to determine how much protection you'll need. To put it lightly, heavy wall adhesive lined heat shrink tubing can take a beating. That means you can put it through the worst and your surfaces will remain pristine, intact, and impenetrable. Heavy wall shields out dirt, water, light, weather, corrosion, fungus, liquids, chemicals, and all possible contaminants. If you're going to need substantial, powerful protection, heavy wall adhesive lined heat shrink tubing is the answer.

3. What colors do you need?

Regular polyolefin tubing is available in rainbow-hued possibilities, but the thickest walled barrier from heavy wall adhesive lined heat shrink tubing comes in only black and red. That's just enough options to safely guard and denote positive and negative battery terminals.

If you need safeguarding for larger, wider diameters that should remain resilient in damp, wet, or fully submerged locations and you don't mind limited colors, there's nothing better for you than heavy wall adhesive lined heat shrink tubing.

Where Heavy Wall Works Best

Whether you're working on a new construction or tackling a renovation, some undertakings have heavy duty demands. If your goal is to establish permanent, fail-safe seals, you can trust heavy wall adhesive lined heat shrink tubing to stand up to the task.

Some industries that benefit from the supreme sealing powers of heavy wall heat shrink include:

• Communication
• Aerospace
• Engineering
• Utilities
• Mass transportation
• Electrical

For jobs that require unbreakable bonds, heavy wall adhesive lined heat shrink delivers unparalleled performance thanks to the sheer density of its dual wall design. Not only are external walls hardened and Herculean but internal walls are lined with the thickest layer of pre-applied hot melt adhesive available. Once activated, the inner layer emulsifies and flows over connections leaving them encased in an impervious, lifelong seal.

No matter how rough, tough, messy, or mean your job is, heavy wall adhesive lined heat shrink tubing is mightier.

Underground Burial

Installation locations that will be underground, water, or cement require equipment that complies with standardized codes to ensure safety and reliable performance. Buried lines transporting data, energy, and power have to work at all times without disruption. Underground cables also have to be ready for dirt, impact, moisture, rust, and pressure.

Heavy wall adhesive lined heat shrink tubing is UL 486D rated for direct burial. It is made from thick, industrial strength polyolefin, which reinforces and preserves connections so they can maintain their dielectric, mechanical, and structural properties even with continuous usage.

If you need secure performance and safe passage for pipes, cables, or conduits in submersible environments then heavy wall adhesive lined heat shrink tubing is the way to go.

Electrical Conduits

Heavy wall adhesive lined heat shrink tubing is also responsible for wrapping up electrical conduits. These large encasements of wires almost always run underwater or underground. They provide power to buildings and structures like subways, ports, and bridges. These mission-critical components are subjected to the deepest, wettest, and worst environments. Heavy wall adhesive lined heat shrink tubing gives the highest degree of protection to electrical conduits that are constantly exposed to water, corrosives, hazards, heat, and impact.

Mass transportation, data centers, social infrastructure, the Internet of Things, wireless communication, and more are all powered and controlled by pipes, wires, cables and conduits running silently, deep below the surface. The connections that keep humanity connected depend on the impeccable performance of heavy wall adhesive lined heat shrink tubing.

Nicks and Quick Fixes

For more generalized uses like repairing or replacing existing projects heavy wall adhesive lined heat shrink tubing is your best option.

It's ready for quick and easy covering of wider diameters and to fix nicks or cuts in wires, cables, cable jackets, or junctions you might run into. The inner wall of adhesive lining melts down quickly with evenly applied heat from a torch or heat gun. With a shrink temperature of 120C and a continuous use temperature of 110C, it's simple to use the heaviest wall heat shrink tubing for the highest quality protection at home or on the job.

For automotive, ATV, motorcycle, and boating enthusiasts, heavy wall adhesive lined heat shrink tubing is ideal for reinforcing and improving connections between battery lugs and cables. Available in red and black, heavy wall tubing offers the ultimate protection for copper fittings. Its brick-like, solid exterior and extra thick adhesive interior keep copper connections snug and dry. No water, weather, vibrations, or viscous chemicals will corrode and rust through your battery terminals when they're surrounded with heavy wall adhesive lined heat shrink tubing.

Alternatives to Heavy Wall Adhesive Lined Tubing

If you don't mind sacrificing flexibility but still want the strongest resistance to everything outside while inside your connections remain crisp and clean, choose heavy wall adhesive lined heat shrink tubing. It's a simple solution for superb mechanical protection, strain relief, environmental sealing, and insulating especially for wider areas in deep, dark places.

However, if locations and larger sizes aren't your main concerns, here are a couple of alternatives that might suit you well.

End Caps

If you're looking for terminations instead of connections and still want the highest level of protection and seal, check out our stock of end caps. Still lined with hot melt, high flow adhesive, end caps come in larger sizes and offer a safe way to stop, seal, and secure any cylindrical ends.

Discover more about what end caps from buyheatshrink.com can do for you.

Regular Heat Shrink Tubing

Although regular use polyolefin isn't nearly as durable or rugged as heavy wall adhesive lined heat shrink tubing, sometimes it's more appropriate. It is much more flexible and comes in brightly assorted colors. Also opt for general purpose polyolefin heat shrink tubing if you're trying to cover diameters less than ⅜ inch.

The Bottom Line

When it comes to heavy wall adhesive lined heat shrink tubing the bottom line is: how much protection do you need?

If you've got pipes, wires, and cables that need to be guarded against the worst, wettest, deepest, and dirtiest, there's no better choice than heavy wall adhesive lined heat shrink tubing. It's the quickest, easiest way to achieve unyielding connection retention that remains indestructible against everything that comes its way.

Here are a few more bottom line considerations to help you decide if you need heavy wall tubing for your next project.

Choose heavy wall adhesive lined heat shrink tubing if:

• You're covering a diameter bigger than 2"
• You need impenetrable seals
• Your environment is underground or underwater
• You want to achieve hurricane-proof protection
• You prefer mechanical protection over flexibility

Make connections that stay watertight, airtight, and vise-like with a rock-hard seal thanks to heavy wall's impervious shielding. No matter how far below the surface your pipes, wires, conduits, and cables have to go, guarantee they're always clean, dry, and perfectly functioning.

Don't risk what matters most with protection that isn't up to the test. Just ask the three little pigs. Thick, strong, and always ready to keep out the big, bad, and worst, get the most and the best from heavy wall adhesive lined heat shrink tubing.
