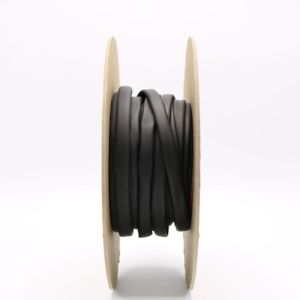

Neoprene 2:1 Heat Shrink Tubing
Neoprene Heat Shrink Tubing Features:
Operating Temperature: -75° C to 120° C
Shrink Temperature: 135° C
Shrink Ratio: 2 to 1
Longitudinal Shrinkage: up to 15%
Diameter
Mil Spec # Manufacturer Part# ID Before Shrink ID After Shrink Wall After Shrink
BUY
1/8"
N/A HSNEO-0125 0.125" 0.062" 0.028"
3/16"
N/A HSNEO-0188 0.188" 0.093" 0.030"
1/4"
AMS-DTL-23053/1-101 HSNEO-025 0.250" 0.143" 0.035"
3/8"
AMS-DTL-23053/1-102 HSNEO-0375 0.375" 0.211" 0.040"
1/2"
AMS-DTL-23053/1-103 HSNEO-050 0.500" 0.286" 0.048"
5/8"
AMS-DTL-23053/1-104 HSNEO-0625 0.625" 0.357" 0.052"
3/4"
AMS-DTL-23053/1-105 HSNEO-075 0.750" 0.428" 0.057"
7/8"
AMS-DTL-23053/1-106 HSNEO-0875 0.875" 0.500" 0.065"
1"
AMS-DTL-23053/1-107 HSNEO-100 1.000" 0.570" 0.070"
1-1/4"
AMS-DTL-23053/1-108 HSNEO-125 1.250" 0.714" 0.087"
1-1/2"
AMS-DTL-23053/1-109 HSNEO-150 1.500" 0.857" 0.095"
1-3/4"
AMS-DTL-23053/1-110 HSNEO-175 1.750" 1.000" 0.107"
2"
AMS-DTL-23053/1-111 HSNEO-200 2.000" 1.000" 0.11
3"
AMS-DTL-23053/1-112 HSNEO-300 3.000" 1.710" 0.125"
Neoprene Heat Shrink Tubing Neoprene is known for its good fluid and solvent resistance, abrasion resistance, and outstanding low temperature flexibility. Neoprene heat shrink tubing is used for insulation, strain relief and abrasion protection on cable harnesses and wire bundles in the military and aerospace industries.
Neoprene Heat Shrink Tubing Features:
Operating Temperature: -75° C to 120° C
Shrink Temperature: 135° C
Shrink Ratio: 2 to 1
Longitudinal Shrinkage: up to 15%
Dimensions & Technical Specs
Mil Spec #
Size
AMS-DTL-23053/1-
Before shrinking
After shrinking
ID Nominal
ID Min
ID Max
Wall Thickness
N/A
1/8"
0.125"
0.062"
0.028"
N/A
3/16"
0.188"
0.093"
0.030"
101 & 201-0
1/4"
0.250"
0.143"
0.035"
102 & 202-0
3/8"
0.375"
0.211"
0.040"
103 & 203-0
1/2"
0.500"
0.286"
0.048"
104 & 204-0
5/8"
0.625"
0.357"
0.052"
105 & 205-0
3/4"
0.750"
0.428"
0.057"
106 & 206-0
7/8"
0.875"
0.500"
0.065"
107 & 207-0
1"
1.000"
0.570"
0.070"
108 & 208-0
1 1/4"
1.250"
0.714"
0.087"
109 & 209-0
1 1/2"
1.500"
0.857"
0.095"
110 & 210-0
1 3/4"
1.750"
1.000"
0.107"
111 & 211-0
2 "
2.000"
1.140"
0.110"
112 & 212-0
3 "
3.000"
1.710"
0.125"
113 & 213-0
4 "
4.000"
2.280"
0.140"
HSNEO-0125-BK
1/8" Neoprene 2:1 Heat Shrink Tubing | 165 Ft Spool | Black
HSNEO-0188-BK
3/16" Neoprene 2:1 Heat Shrink Tubing | 165 Ft Spool | Black
HSNEO-025-BK
1/4" Neoprene 2:1 Heat Shrink Tubing | 165 Ft Spool | Black
HSNEO-0375-BK
3/8" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-050-BK
1/2" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-0625-BK
5/8" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-075-BK
3/4" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-0875-BK
7/8" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-100-BK
1" Neoprene 2:1 Heat Shrink Tubing | 100 Ft Spool | Black
HSNEO-125-BK
1-1/4" Neoprene 2:1 Heat Shrink Tubing | 50 Ft Spool | Black
HSNEO-150-BK
1 1/2 Neoprene 2:1 Heat Shrink Tubing | 50 Ft Spool | Black
HSNEO-175-BK
1-3/4" Neoprene 2:1 Heat Shrink Tubing | 50 Ft Spool | Black
HSNEO-200-BK
2" Neoprene 2:1 Heat Shrink Tubing | 50 Ft Spool | Black
HSNEO-300-BK
3" Neoprene 2:1 Heat Shrink Tubing | 50 Ft Spool | Black
