Bentley Harris

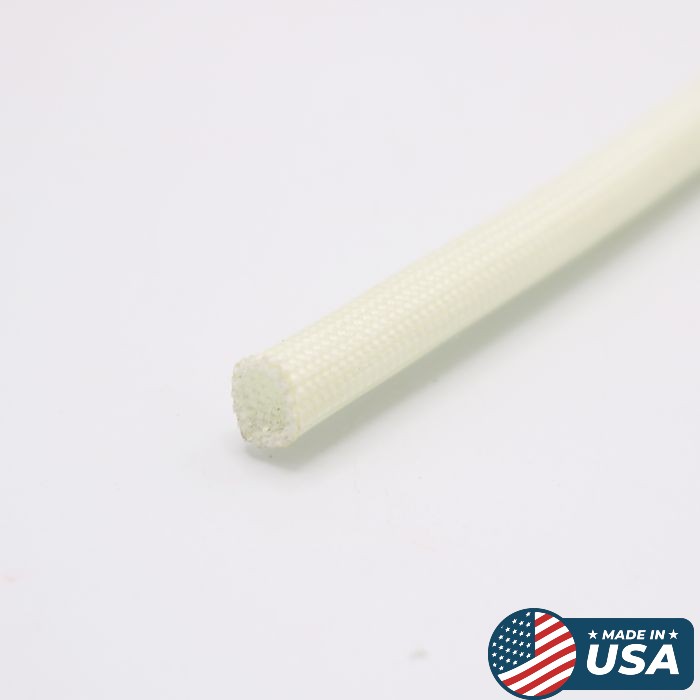

Extruded Silicone Rubber Fiberglass Sleeving - Ben Har 1151-XL-200
Ben Har 1151-XL-200 (Extruded Silicone) Fiberglass Sleeving NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
Features:
Tightly braided fiberglass sleeve completely coated with extruded silicone resin to provide superior electrical and thermal protection.
Thermal Characteristics - UL/NEMA Thermal Class H (-25 to 200°C)
Meets Mil-I-3190/6
CSA rated
Available in NEMA sizes #24 (AWG) to 2". NEMA TF-1, Type 5
Designed to perform for long periods in a 200°C range without loss of any electrical or physical properties.
Dielectric Grade A: 7000V minimum average breakdown, 5000V minimum individual.
High quality equivalent to: Ben-Har XL-200, Varglas Silicone Resin Class H-A-1, Hilec Turbo 117F
Size
Feet
Manufacturer Part Number AWG Size ID
Buy
24 AWG
500 FT/SPOOL
BSBH-XL200-024 24 0.022
22 AWG
500 FT/SPOOL
BSBH-XL200-022 22 0.027
20 AWG
500 FT/SPOOL
BSBH-XL200-020 20 0.034
18 AWG
500 FT/SPOOL
BSBH-XL200-018 18 0.042
16 AWG
500 FT/SPOOL
BSBH-XL200-016 16 0.053
14 AWG
500 FT/SPOOL
BSBH-XL200-014 14 0.066
12 AWG
250 FT/SPOOL
BSBH-XL200-012 12 0.085
10 AWG
250 FT/SPOOL
BSBH-XL200-010 10 0.106
9 AWG
250 FT/SPOOL
BSBH-XL200-009 9 0.118
8 AWG
250 FT/SPOOL
BSBH-XL200-008 8 0.133
7 AWG
250 FT/SPOOL
BSBH-XL200-007 7 0.148
6 AWG
125 FT/SPOOL
BSBH-XL200-006 6 0.166
5 AWG
125 FT/SPOOL
BSBH-XL200-005 5 0.186
4 AWG
125 FT/SPOOL
BSBH-XL200-004 4 0.208
3 AWG
125 FT/SPOOL
BSBH-XL200-003 3 0.234
2 AWG
50 FT/SPOOL
BSBH-XL200-002 2 0.263
1 AWG
50 FT/SPOOL
BSBH-XL200-001 1 0.294
0 AWG
50 FT/SPOOL
BSBH-XL200-00 0 0.33
3/8"
50 FT/SPOOL
BSBH-XL200-3-8 3/8" 0.387
7/16"
50 FT/SPOOL
BSBH-XL200-7-16 7/16" 0.45
1/2"
50 FT/SPOOL
BSBH-XL200-1-2 1/2" 0.512
5/8"
50 FT/SPOOL
BSBH-XL200-5-8 5/8" 0.64
3/4"
50 FT/SPOOL
BSBH-XL200-3-4 3/4" 0.786
7/8"
50 FT/SPOOL
BSBH-XL200-7-8 7/8" 0.893
1"
50 FT/SPOOL
BSBH-XL200-01 1" 1.018
Ben Har 1151-XL-200 (Extruded Silicone) Fiberglass Sleeving Silicone coated fiberglass braided sleeving is commonly used in high voltage applications such as motors, transformers, welding appratus, coils, and lighting ballasts. Because of its versatility and 200°C temperature rating, silicone gum coated fiberglass sleeving has also found many uses in insulation of leads and connections in electrical and electronic components ( transformers, coils, relays, solenoids etc.) where temperature extremes from –70 ° C through 200 ° C are encountered. Silicone rubber coated glass sleeving is the only flexible insulating material which can withstand continuous exposure to ambient temperatures from -70°C through 200°C.
