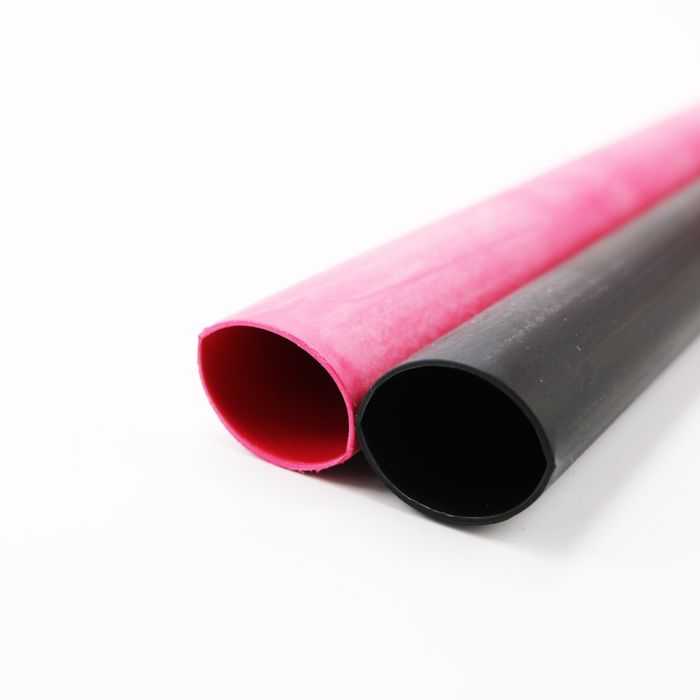

BuyHeatShrink® 3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing
Features:
- 3:1 Shrink Ratio with melt adhesive inner lining (shrinks to 1/3 its original diameter)
- Longitudinal Shrinkage: up to 10%
- Meets requirements of AMS-DTL-23053/15 (formerly MIL-I-23053/15), Class 1
- UL 224 VW-1 flame retardant (jacket only)
- UL 486D rated for direct burial
- Dielectric Strength 500 V/mil (500 x Jacket Wall thickness x 1000) (for example, a typical tube thickness after shrinking will be about 0.10. Using these caculations, the rating will be about 50,000V, or 50KV)
- Maximum Continuous use temperature 110°C
- Shrink Temperature of 120°C and operating temperature of -55°C to + 110°C
- Crosses to: Canusa CFW, 3M HDT, 3M ITCSN, Tyco Raychem RHW, LG PHWT
- Typical applications include: Electrical insulation - Ideal for exposed or underground applications providing good insulation, waterproofing and mechanical protection. Also suitable for Mechanical and abrasion protection, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
| Diameter | Diameter | Manufacturer Part # | Mil Specification # | ID Before Shrink | Max ID after shrinking | Wall After Shrink (jacket) | Wall After Shrink(adhesive) | BUY (4ft Length) |
|---|---|---|---|---|---|---|---|---|
| 3/8" | 3/8" | HS3AH-0375 | AMS-DTL-23053/15-107 | 0.354" | 0.118" | 0.079" | 0.01" | |
| 0.4" | 0.4" | HS3AH-040 | AMS-DTL-23053/15-108 | 0.39" | 0.15" | 0.09" | 0.01" | |
| 1/2" | 1/2" | HS3AH-050 | - | 0.512" | 0.158" | 0.094" | 0.012" | |
| 0.8" | 3/4" | HS3AH-075 | - | 0.750" | 0.24" | 0.09" | 0.014" | |
| 0.9" | 7/8" | HS3AH-090 | AMS-DTL-23053/15-101 | 0.866" | 0.236" | 0.098" | 0.014" | |
| 1.1" | 1.1" | HS3AH-110 | - | 1.1" | 0.315" | 0.12" | 0.014" | |
| 1.3" | 1.3" | HS3AH-1375 | AMS-DTL-23053/15-109 AMS-DTL-23053/15-102 | 1.299" | 0.315" | 0.126" | 0.014" | |
| 1.5" | 1.5" | HS3AH-150 | AMS-DTL-23053/15-103 | 1.5 | 0.47" | 0.16" | 0.015" | |
| 1.75" | 1.75" | HS3AH-175 | AMS-DTL-23053/15-110 AMS-DTL-23053/15-103 | 1.77 | 0.472" | 0.169" | 0.016" | |
| 2" | 2" | HS3AH-200 | - | 2.00" | 0.63" | 0.17" | 0.017" | |
| 2.15" | 2.15" | HS3AH-215 | AMS-DTL-23053/15-104 | 2.165" | 0.63" | 0.177" | 0.016" | |
| 2.7" | 2.7" | HS3AH-270 | - | 2.70" | 0.87" | 0.17" | 0.017" | |
| 3" | 3" | HS3AH-300 | AMS-DTL-23053/15-105 AMS-DTL-23053/15-111 | 2.953" | 0.827" | 0.173" | 0.016" | |
| 3.75" | 3.75" | HS3AH-375 | - | 3.74" | 1.18" | 0.169" | 0.018" | |
| 5" | 5" | HS3AH-500 | AMS-DTL-23053/15-112 AMS-DTL-23053/15-106 | 5.11 | 1.42" | 0.17" | 0.018" | |
| 7.1" | 7" | HS3AH-700 | - | 7.10" | 1.97" | 0.17" | 0.018" |
