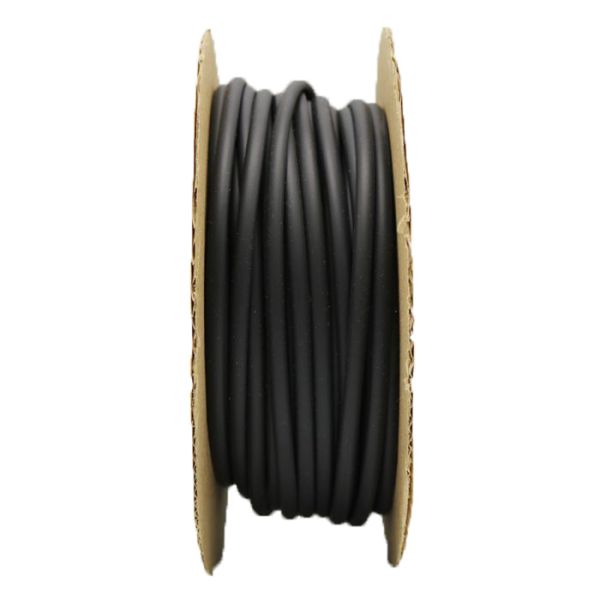

The most popular Heat shrink tubing for electrical insulation and bonding cables in a wide range of colors and shrink sizes. 2 to 1 Shrink tubing means the material shrinks to half of the original diameter when heated using an oven or heat gun.
Features:
2:1 Shrink Ratio (shrinks to 50% of its original diameter)
SAE AS23053/5 Class 1 & 3, Class 2 is Clear (Formerly AMS-DTL-23053/5 Class 1, 2 & 3)
UL 224: VW-1, 600V, 125°C (File Number: E319303, except clear)
RoHS & REACH Compliant
Maximum Continuous use temperature 135°C
Colored Heat Shrink Tubing: We carry 12 standard heat shrink colors: Black, Clear, Red, White, Blue, Yellow, Brown, Gray, Orange, Green, Violet and Yellow/Green
Shrink Temperature of 90°C and operating temperature of -55°C to + 135°C
Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
NOTE– This is a QPL (Qualified Products List) Approved product which not only meets the requirements of what’s formerly known as AMS-DTL-23053/5, but it is certified to the new SAE AS23053/5 Standard.
For a lower cost 2:1 heat shrink product that also meets, but is not certified to this standard, click here.
The Dunbar 2:1 Heat Shrink Tubing stands out as the preferred choice for electrical insulation and cable bonding, available in a vibrant array of 12 standard colors. Designed with precision, this tubing effortlessly reduces to 50% of its original diameter upon heating, facilitating easy application. It boasts certification under the SAE AS23053/5 Class 1 & 3 and UL 224: VW-1 standards, guaranteeing superior performance and safety. Notably RoHS & REACH compliant, it operates efficiently within a temperature range of -55°C to +135°C. It seamlessly aligns with applications like insulation, wire bundling, mechanical protection, and more.
Dunbar is a leading supplier of Mil-Spec Heat Shrinkable Tubing, offering an extensive range of both heat shrinkable and non-shrinkable products. Established in 1986 as a privately-owned entity, Dunbar has consistently prioritized exceptional customer service and top-tier product quality. Choose Dunbar for unparalleled excellence in the industry.
