2:1 Micro Polyolefin Heat Shrink Tubing Rolls

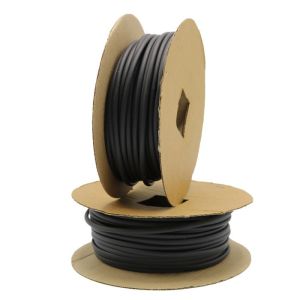

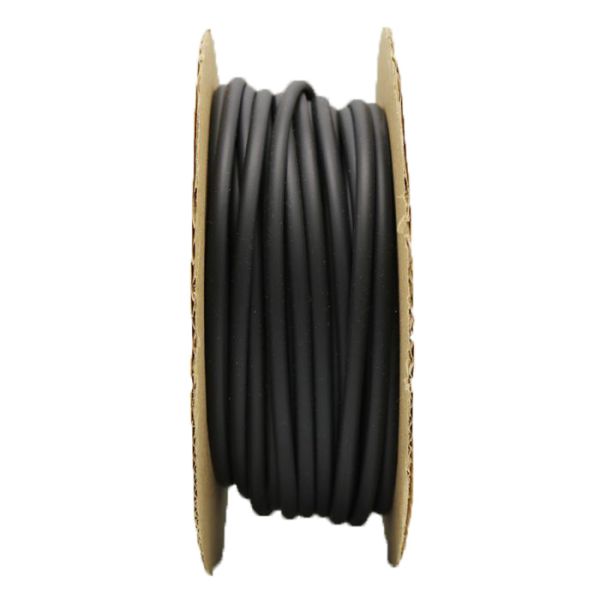

BuyHeatShrink®2:1 Polyolefin Heat Shrink Tubing Spools

The most popular Heat shrink tubing for electrical insulation and bonding cables in a wide range of colors and shrink sizes.  2 to 1 Shrink tubing means the material shrinks to half of the original diameter when heated using an oven or heat gun.
Features:
  • 2:1 Shrink Ratio (shrinks to 50% of its original diameter)
  • Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), and 3
  • UL 224 VW-1 and CSA OFT recognized
  • Maximum Continuous use temperature 135°C
  • Colored Heat Shrink Tubing: We carry 12 standard heat shrink colors: Black, Clear, Red, White, Blue, Yellow, Brown, Gray, Orange, Green, Violet and Yellow/Green
  • Shrink Temperature of 120°C and operating temperature of -55°C to + 135°C
  • Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221, 3M FP301 heat shrink, Canusa CPX-100, LG GSHS-1635F
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • RoHS and RoHS2 compliant
  • Range of rolls and sizes, some sizes are sold by the foot other sizes range from 25 foot rolls to 500 foot rolls, as well as optional 4 foot pieces.
  • Other 2 to 1 Polyolefin options including Pre cut Heat ShrinkLow Temperature Shrink Tubing and Shiny Heat Shrink are also available in various diameters and lengths.
Diameter Mil Specification #Manufacturer Part #ID Before Shrink ID After ShrinkWall After Shrink Flat Width Buy
0.014 Black OnlyHS2-00140.014"0.007"0.005"0.02"
4 FT/PIECE $78.90
0.024 Black OnlyHS2-00240.024"0.012"0.006"0.04"
4 FT/PIECE $57.00
0.025 Clear onlyHS2-00250.025"0.010"0.013"0.04"
4 FT/PIECE $49.70
0.045 Black OnlyHS2-00450.045"0.017"0.007"0.07"
4 FT/PIECE $50.90
