BuyHeatShrink® Acrylic Coated Fiberglass Sleeving Grade B
NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed
Features:

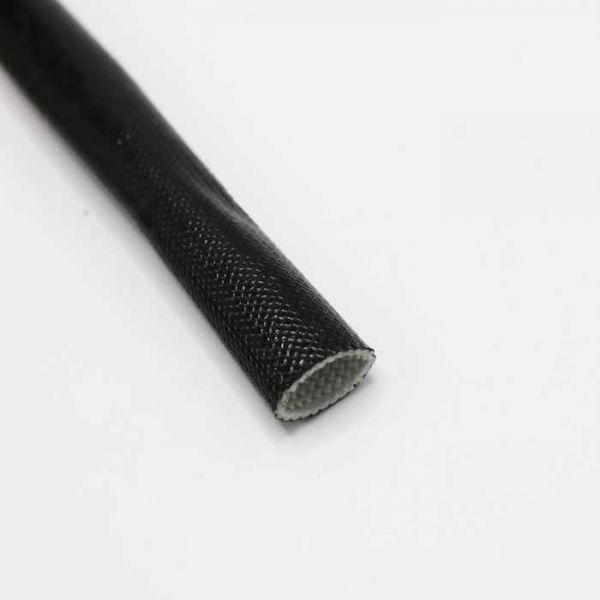

Tightly braided fiberglass sleeve completely coated with acrylic resin to provide superior electrical and thermal protection.
Thermal Characteristics - UL/NEMA Thermal Class F (-25 to 155°C)
Meets Mil-I-3190/3
CSA rated
Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6
Compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties.
Dielectric Grade A: 7000V minimum average breakdown, 5000V minimum individual.
High quality equivalent to: Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series (417F is Grade A), Alpha Wire AF155
Suggested Applications:
Commonly used in high voltage applications such as motors, transformers, welding appratus, coils, and lighting ballasts. Because of its versatility and 155°C termpearture rating, acrylic coated fiberglass sleeving has also found many uses in appliances such as lighting fixtures (ballasts), stoves, oven and furnace controls, relays, breaker panels, and many other commercial and industrial applications
Our Grade B acrylic coated fiberglass high quality braided sleeve performance makes them a perfect alternative to Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series (417F is Grade A), and Alpha Wire AF155 sleeving. Our BuyHeatShrink® acryl sleeving products Meets Mil-I-3190/3 and are CSA rated. They are compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties. Dielectric Grade B with 7000V minimum average breakdown, 5000V minimum individual. This tightly braided fiberglass sleeve completely coated with acrylic resin provides superior electrical and thermal protection is available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6. Thermal Characteristics UL/NEMA Thermal Class F (-25 to 155°C)
