B Grade Vinyl Coated Fiberglass Braided Cable Sleeving

main product photo
Loading...

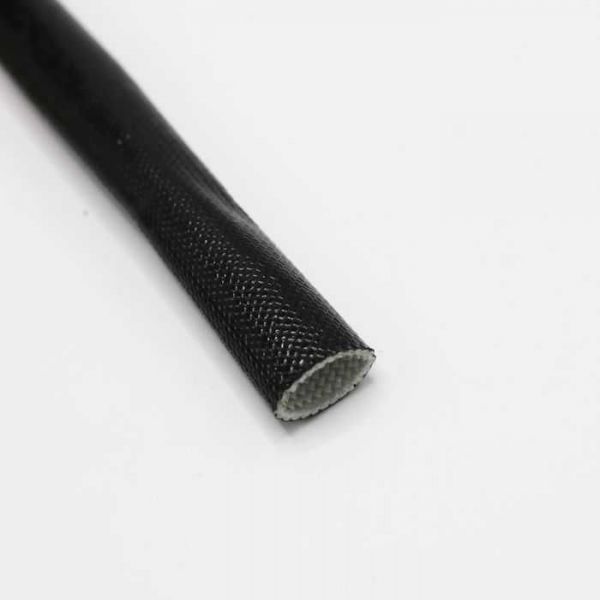

B Grade Vinyl Coated Braided Fiberglass Sleeving

NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed

Features:
  • Tightly braided fiberglass sleeve completely coated with Polyvinyl Chloride resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class B (-20 to 130°C)
  • Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 3
  • Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
  • Dielectric Grade A: 2500V minimum average breakdown, 1500V minimum individual.
  • High quality equivalent to: Ben-Har Vinyl, Varfil sleeving, Hilec 310B series, Alpha Wire PIF-130

High-temperature vinyl coated braided fiberglass sleeves are commonly used in high voltage applications where flame resistance is necessary. Terminal insulation applications include radio, television, and commercial electronics. These instances have operating temperatures below 130℃. Also, due to its flame retardancy, vinyl coating is ideal for applications involving soldered splices and terminations.

Be the first to review this product
Size Feet Part NumberID Buy
24 AWG 500 FT/SPOOL BSVB-024G0.022"
$84.83 BSVB-024G
22 AWG 500 FT/SPOOL BSVB-022G0.027"
$85.79 BSVB-022G
20 AWG 500 FT/SPOOL BSVB-020G0.034"
$88.54 BSVB-020G
18 AWG 500 FT/SPOOL BSVB-018G0.042"
$89.78 BSVB-018G
17 AWG 500 FT/SPOOL BSVB-017G0.047"
$90.05 BSVB-017G
16 AWG 500 FT/SPOOL BSVB-016G0.053"
$92.53 BSVB-016G
15 AWG 500 FT/SPOOL BSVB-015G0.059"
$92.80 BSVB-015G
14 AWG 500 FT/SPOOL BSVB-014G0.066"
$95.69 BSVB-014G
13 AWG 250 FT/SPOOL BSVB-013G0.076"
$55.15 BSVB-013G
12 AWG 250 FT/SPOOL BSVB-012G0.085"
$55.64 BSVB-012G
11 AWG 250 FT/SPOOL BSVB-011G0.095"
$58.45 BSVB-011G
10 AWG 250 FT/SPOOL BSVB-010G0.106"
$60.04 BSVB-010G
9 AWG 250 FT/SPOOL BSVB-009G0.118"
$65.08 BSVB-009G
8 AWG 250 FT/SPOOL BSVB-008G0.133"
$68.51 BSVB-008G
7 AWG 250 FT/SPOOL BSVB-007G0.148"
$74.49 BSVB-007G
6 AWG 250 FT/SPOOL BSVB-006G0.166"
$83.53 BSVB-006G
5 AWG 250 FT/SPOOL BSVB-005G0.186"
$87.99 BSVB-005G
4 AWG 250 FT/SPOOL BSVB-004G0.208"
$98.44 BSVB-004G
3 AWG 250 FT/SPOOL BSVB-003G0.234"
$110.99 BSVB-003G
2 AWG 250 FT/SPOOL BSVB-002G0.263"
$124.54 BSVB-002G
0 AWG 100 FT/SPOOL BSVB-000G0.33"
$67.31 BSVB-000G
3/8" 100 FT/SPOOL BSVB-03750.387"
$96.81 BSVB-0375
7/16" 100 FT/SPOOL BSVB-043750.45"
$127.58 BSVB-04375
1/2" 100 FT/SPOOL BSVB-0500.512"
$166.58 BSVB-050
5/8" 100 FT/SPOOL BSVB-06250.64"
$195.53 BSVB-0625
3/4" 100 FT/SPOOL BSVB-0750.786"
$233.61 BSVB-075
7/8" 100 FT/SPOOL BSVB-08750.893"
$280.56 BSVB-0875
1" 100 FT/SPOOL BSVB-1001.018"
$359.40 BSVB-100
