NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed
Features:

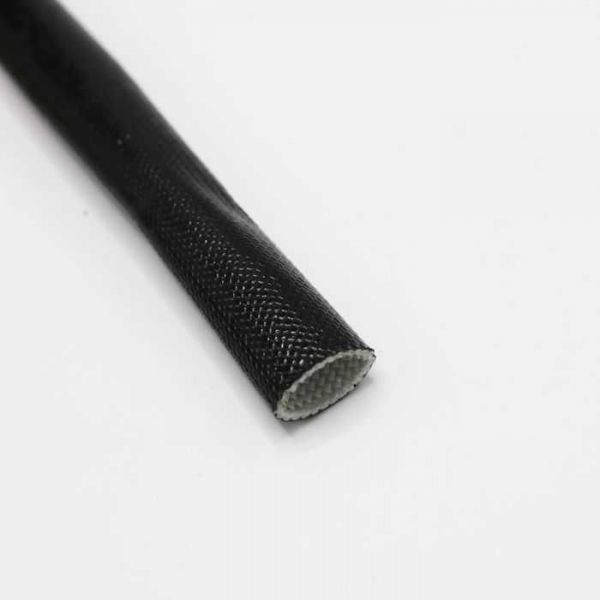

Tightly braided fiberglass sleeve is completely coated with acrylic resin to provide superior electrical and thermal protection
Thermal Characteristics - UL/NEMA Thermal Class F (-25 to 155°C)
Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6
Compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties
Dielectric Grade C-3: Standard wall provides up to 300V space factor insulation (although no dielectric breakdown is guaranteed). Heavy wall provides 600V (also, no dielectric is guaranteed).
High quality equivalent to: Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series
Acrylic Sleeving is commonly used in high voltage applications such as motors, transformers, welding apparatus, coils, and lighting ballasts. Because of its versatility and 155°C temperature rating, acrylic coated fiberglass sleeving has also found many uses in appliances such as lighting fixtures, stoves, oven and furnace controls, relays, breaker panels, and numerous commercial and industrial applicationss
The performance of our Grade C3 Acrylic Coated Fiberglass Braided Sleeving makes it a perfect alternative to Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series. This sleeving is compatible with modified polyester, acrylic, epoxy, phenolic, and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties. Dielectric GRADE C3 with 2500V minimum average breakdown, 1500V minimum individual. This tightly braided fiberglass sleeve is completely coated with acrylic resin to provide superior electrical and thermal protection—available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6.
Thermal Characteristics UL/NEMA Thermal Class F (-25 to 155°C)
